Tissue roll making machine manufacturer Ahmedabad

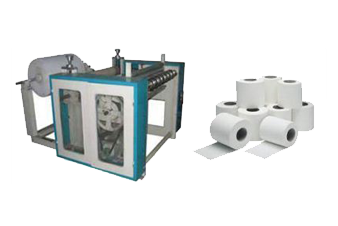

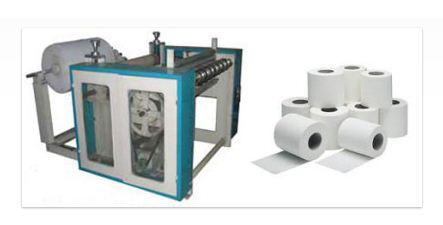

Pharma Tissue Roll Making Machine

We are engaged in offering high speed, task oriented machines. The Pharma Tissue Roll Making Machine works as a slitting machine with perforation. The rolls manufactured are specifically used in the medical field across the country. This machine can also be used to manufacture kitchen rolls and industrial tissue rolls.

Vibhuti Industries is actively engaged for the past 23 years in manufacturing international standard machines. Our clients rely on us for high speed energy efficient machines that serve their purpose for years together. We use advance technology in the Pharma Tissue Roll Making Machine which allows the machine to count the number of sheets wounded in each roll. To manufacture and set up these machines, we use high grade steel and components to enhance the durability of the machine.

Features:

The machine is available in 810mm (81cm) working width

Comes with unwind unit with positive drive

Surface rewinding unit is available

Optional embossing unit is offered with this machine

Can produce up to 1500 rolls per day

Owing to these top features and the use of optimum grade raw materials, our Pharma Tissue Roll Making Machine has become one of the top choice for our clients across the country. They enjoy world class quality and performance at an unmatched price.

Pharma Tissue Roll Making Machine

Unwind unit with positive drive

Perforation unit

Embossing unit (optional)

Slitting unit

Surface rewinding unit

Technical Specification:
Maximum Paper Width 810mm (81 Cm)
Maximum Rewinding Diameter 150mm(15cm)
Maximum Unwind Diameter 1200mm(120cm)
Parent Roll Core Inner Diameter 76mm
Rewinding Roll Core Inner Diameter Minimum-38 Max-51
Rewinding Roll Core Inner Diameter 33mm - 46 Mm
Unwind Unit One
Production/ Capacity 1500rolls/8 Hours
Perforation Repeat 100mm 150mm 200mm (10cm,15cm,20cm)
Perforation Perforation Drives Adjust To Timing Belt.
Embossing Metal To Rubber Type Steal To Rubber Male &Female Type.
Weight 1100kg
Space Required 6.5'x6.5x4.5'fit
Motor With Controller Drive 2hp With D.C.Panel Drive
Embossing Desgn As Per Requirement
Row Material Weight 150kg
Counter Meter Auto Start Stop Type
