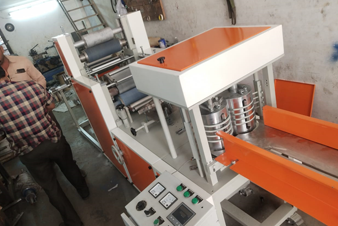

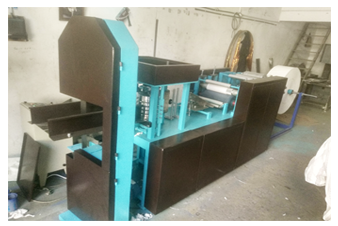

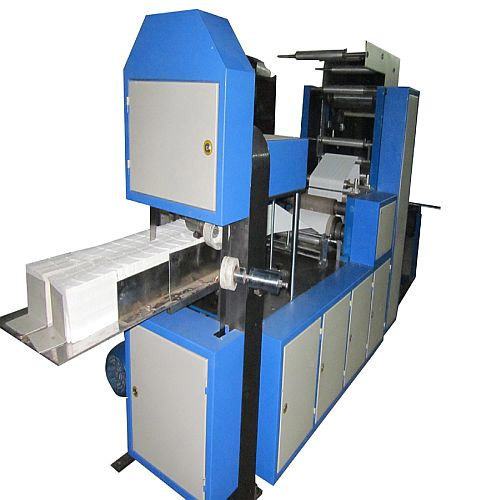

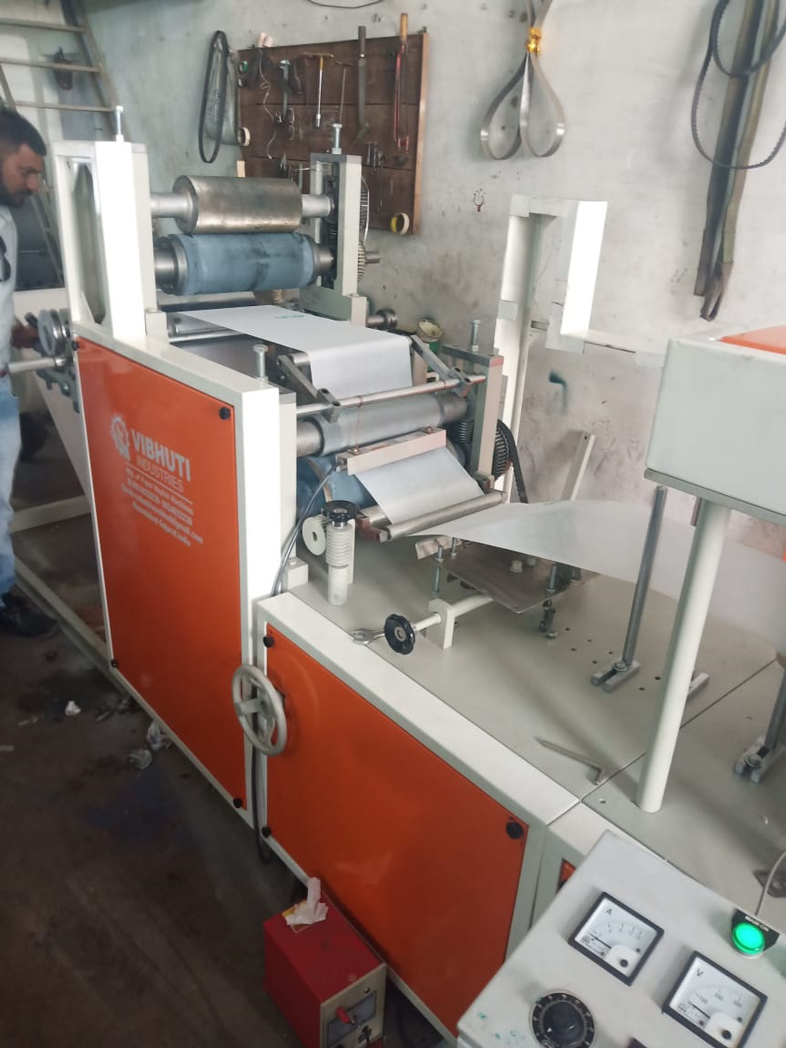

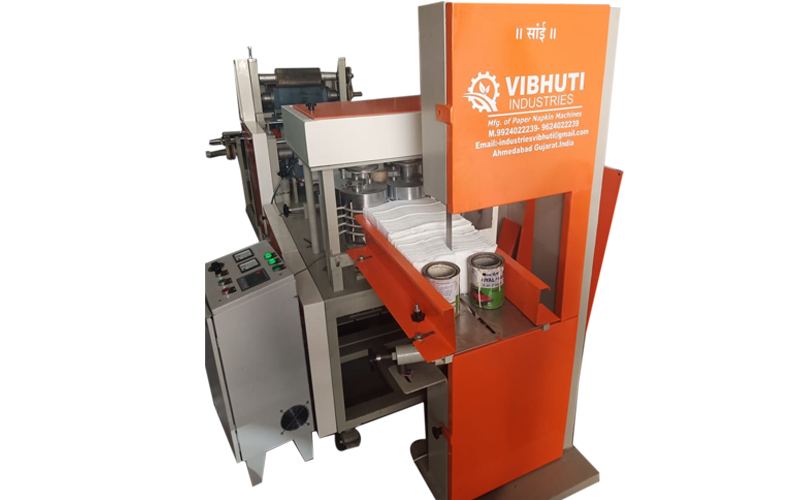

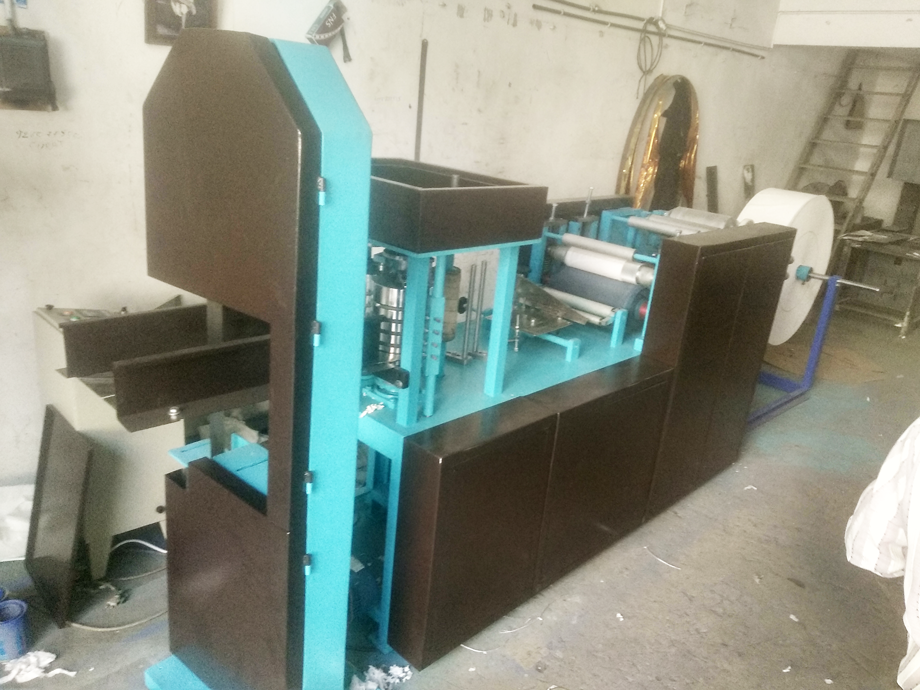

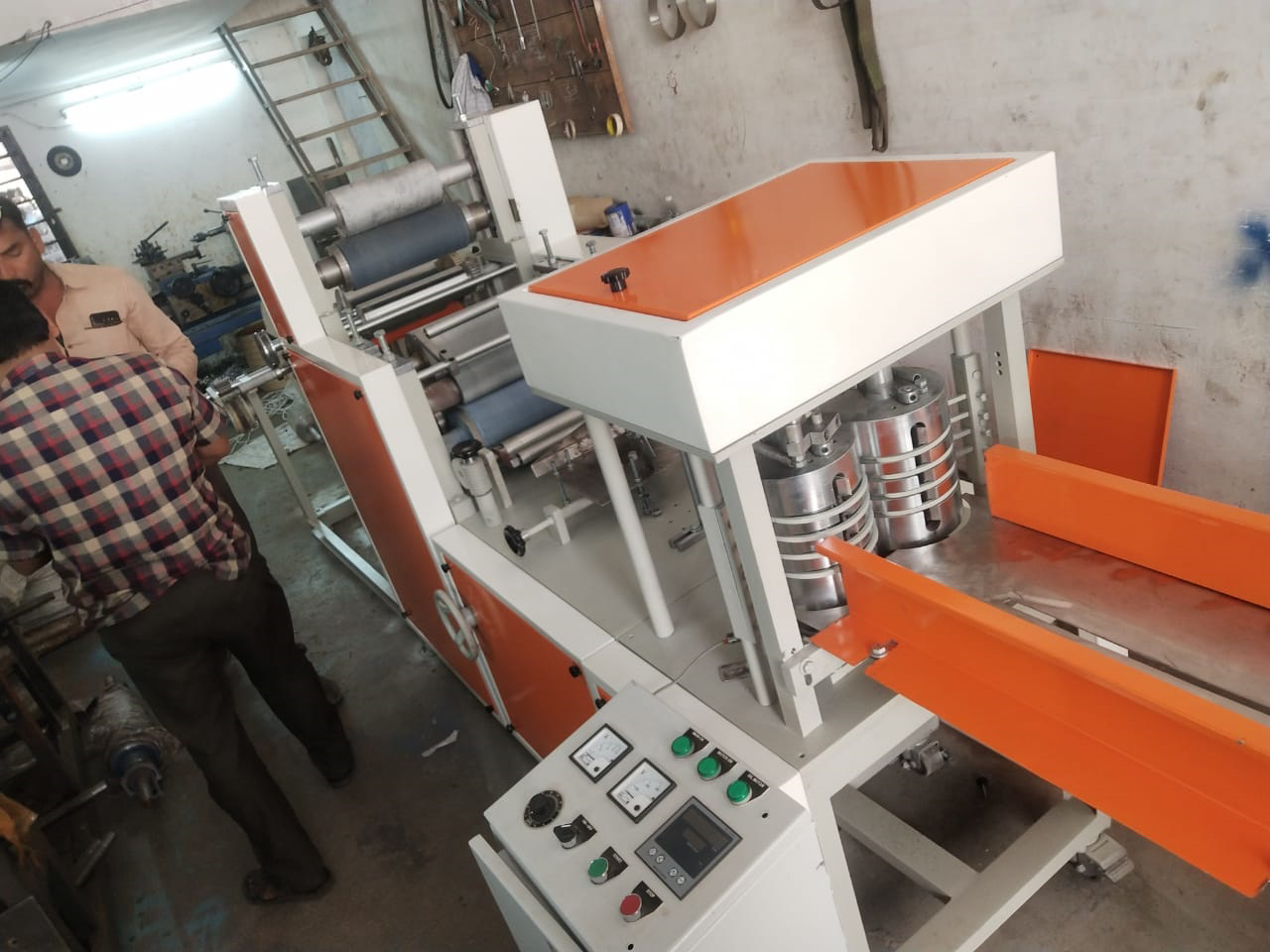

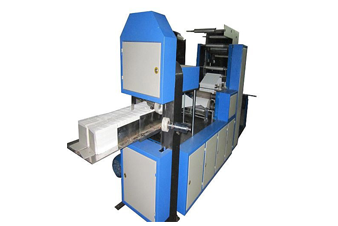

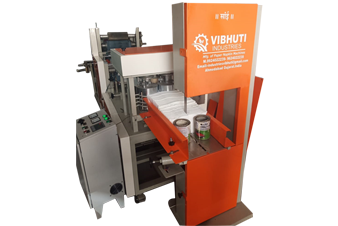

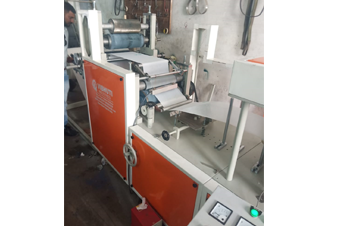

Vibhuti Industries has been a pioneer Manufacturer of paper napkin machines for the past 2 decades. With every machine manufactured by us, we strive to deliver quality and proven efficiency. The Multi Size Bencho Tissue Making Machine is one of our premium products to achieve proficiency and enhance the production capacity of any industrial unit.
This fully automatic machine is capable of folding jumbo paper napkin rolls into squares or rectangular shape. The smart machine can efficiently handle printing, embossing and counting of napkins as well. The client can feed the printing or embossing design to the machine and it will deliver them with precision. The Multi Size Paper Napkin Machine is uniquely designed to handle 3 paper widths in a single machine, giving production flexibility to the client. Top grade steel body and components ensure best performance and energy efficiency.
Features:
Online counting system with the help of electronics
Print and embossing customisation
Heavy base of the machine eliminates vibration
Additional remote offers better control to the operator over the speed of the machine.
Electric sensor helps customise counting, printing or embossing.
Our engineers at Vibhuti Industries subject the Multi Size Bencho Tissue Making Machine to multiple tests to ensure that it adheres to safety and performance norms. Our clients thus enjoy highest quality machines at a competitive price.
Number of printing and embossing stations, Steel to paper ball embossing or steel to male to female.
| Description | |
|---|---|
| Paper width | 3 Standard Size In 1 Machine |
| Printing unit | Single Analox Printing (As Per Requirements) |
| Embossing Unit | Single Embossing |
| Parent Roll Diameter | 1200mm |
| Parent Roll Core Inner Diameter | 76mm |
| Folding Size | ¼ |
| SPEED | 2,00,000 Per Shift In 8 Hours. (Speed Varies According To Quality Speed 100-160 Km) |
| Power Required | Ac 220 Volts. |
| Transmission | Timing Belts. |
| Controlling System | Frequency Drive Dc |
| Machine Weight | Minimum 1800-Max 2000kg |
| Embossing Design | As Per Requirement |
| Space Required | 5.0 Feet X 16 Feet |
| GSM Required | 15 To 18 |
Machine Details
| Description | |
|---|---|
| Main motors | 2.0 Hp Dc motor |
| Band saw cutter motor | 1.5 Hp DC motor |
| Speed controller | Variable pulley |
| Counting system | Online with the help of electronics |
| Base | Heavy base which makes machine vibration free |
